Meanwell Driver
▸Type: LRS-150-24
▸Voltage: DC24V
▸Watt: 150W
▸Warranty: 3 years warranty
Meanwell 150W Single Output Switching Power Supply
| Item No. | Watt | Voltage | Rated Current | Certification |
| TXN-MW-LRS150-12 | 150W | 12V | 12.5A | CE,UL,CCC,PSE,SAA,KC |
| TXN-MW-LRS150-24 | 156W | 24V | 6.5A | CE,UL,CCC,PSE,SAA,KC |

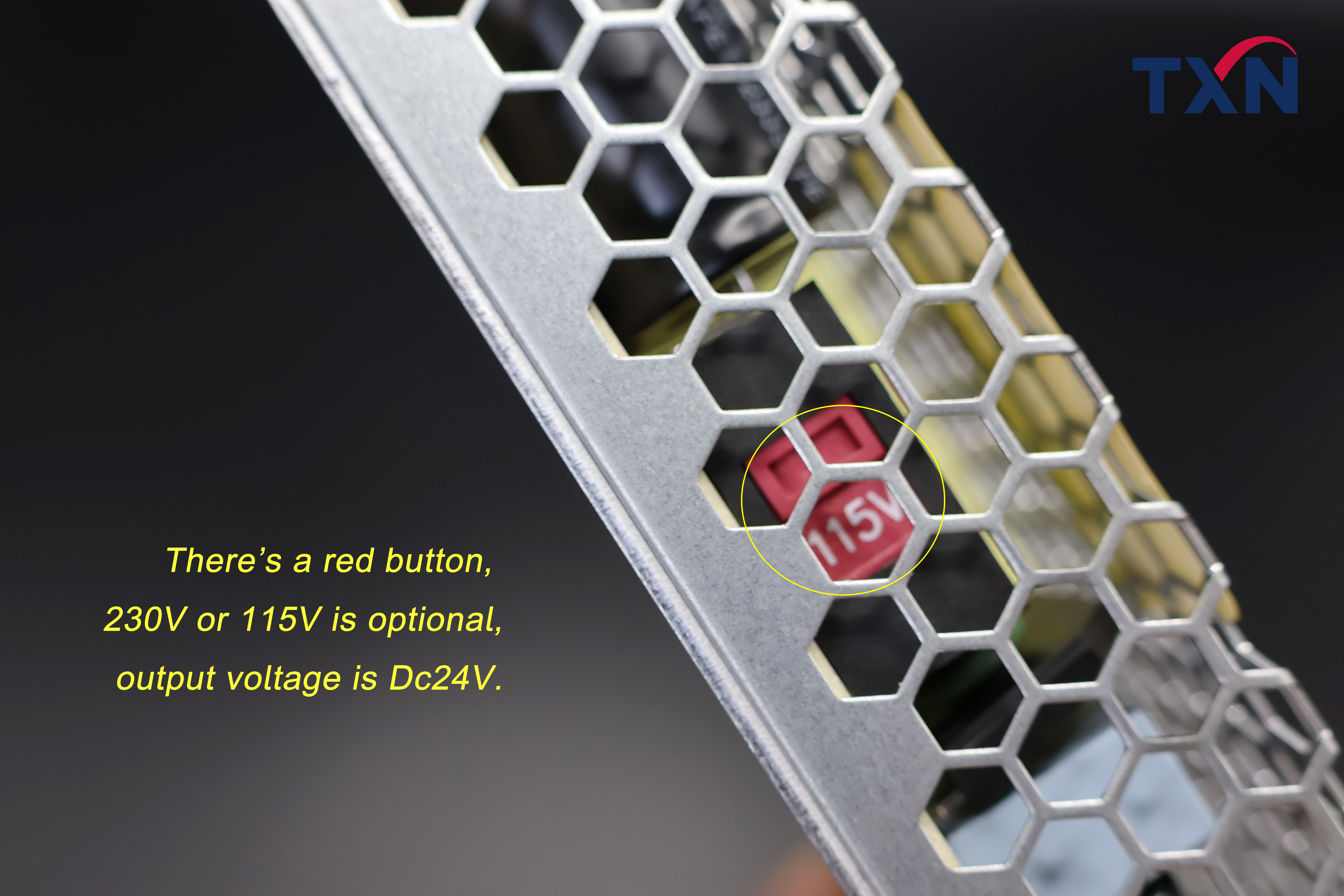

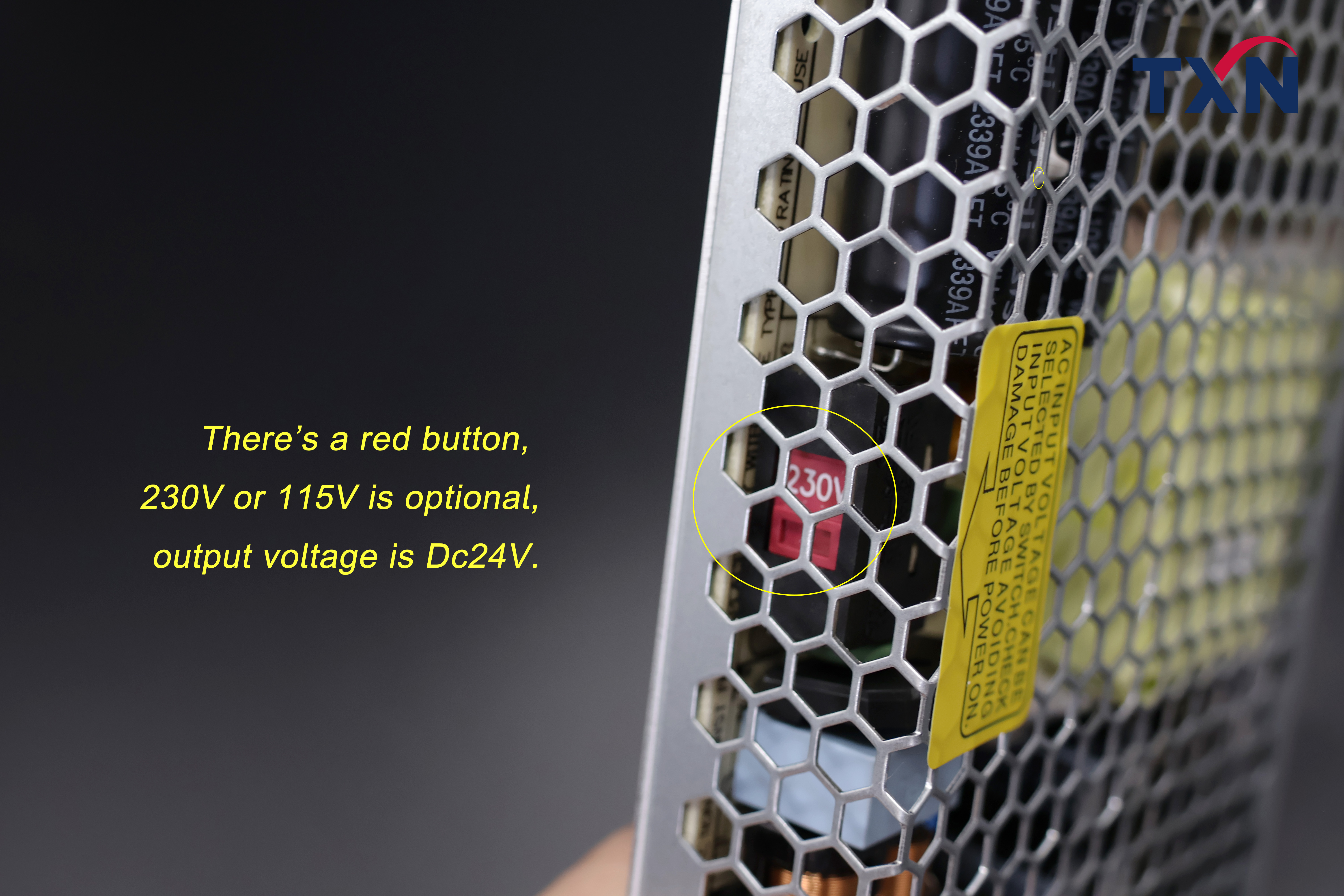

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
No load power consumption<0.5W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage /Over temperature
Cooling by free air convection
Compliance to lEC/EN 60335-1(PD3) and IEC/EN61558-1,2-16 for household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category III
100% full load burn-in test
3 years warranty

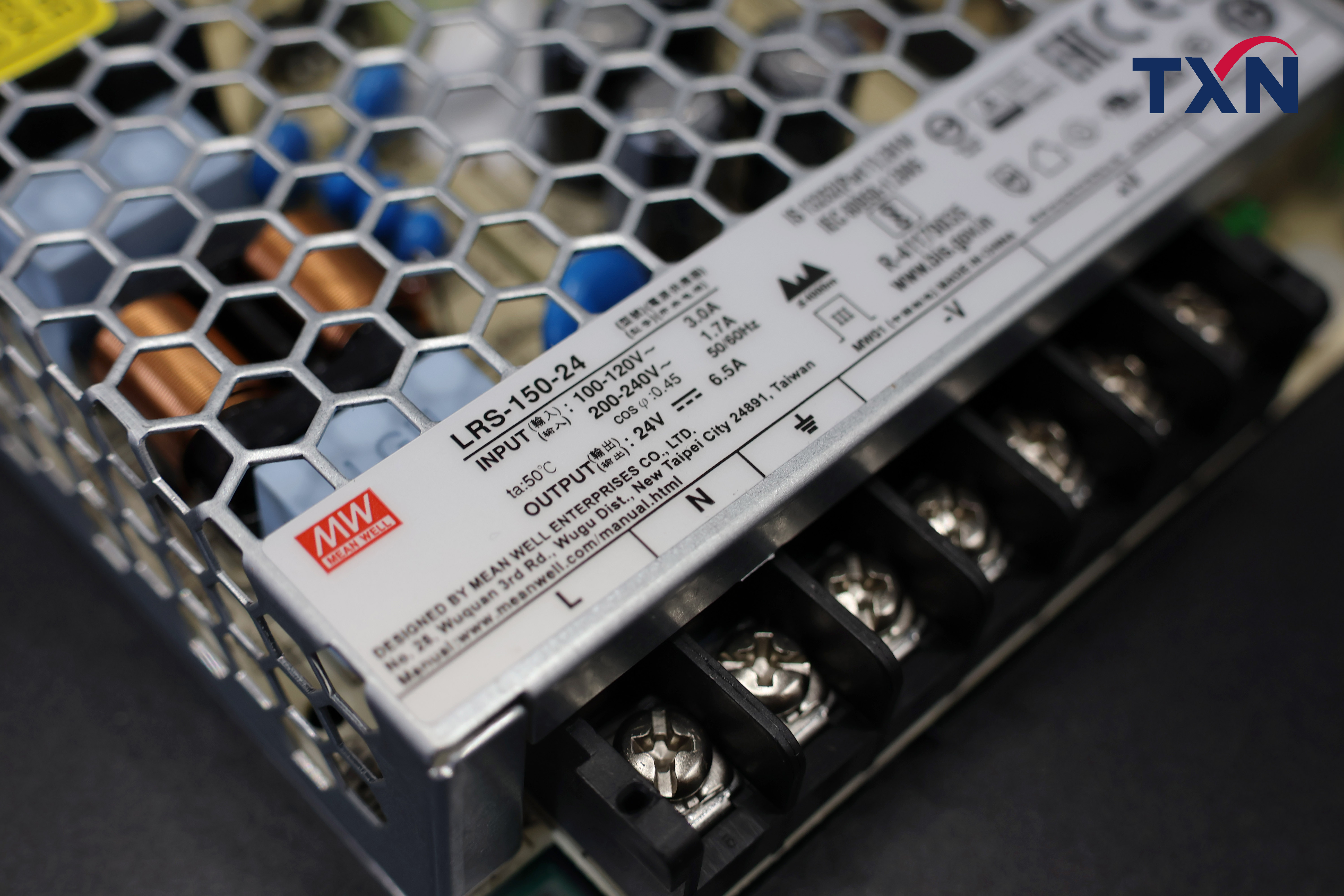

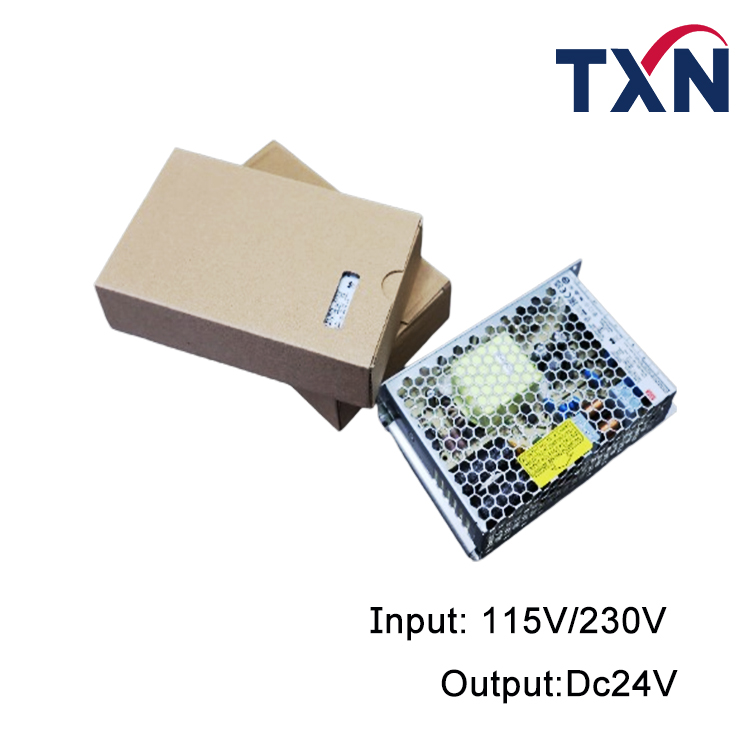

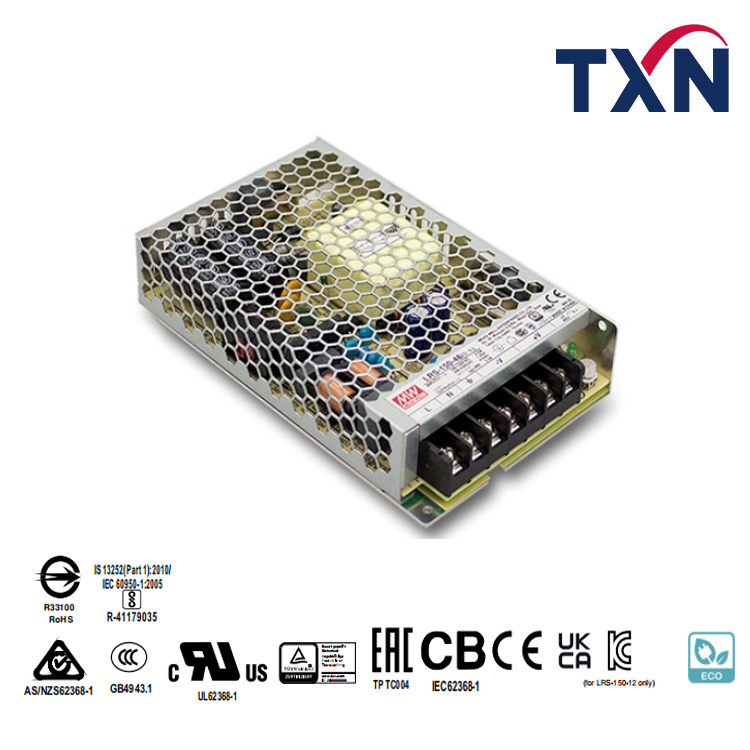

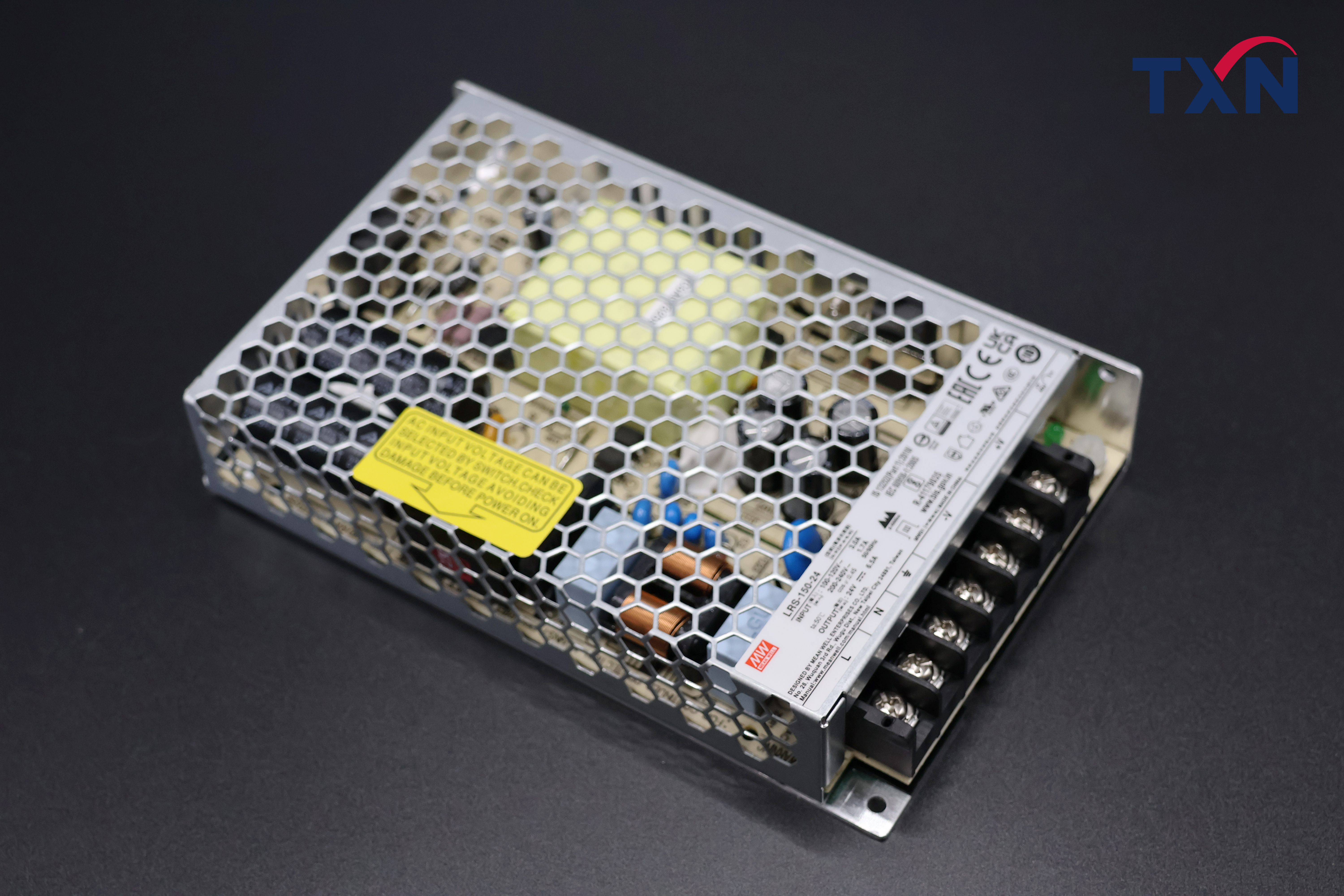

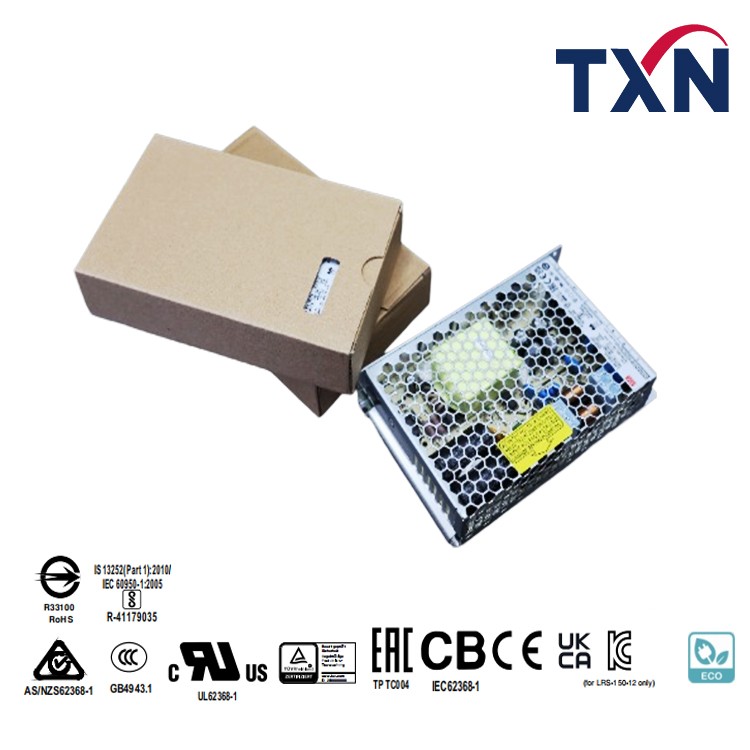

Product Pictures:

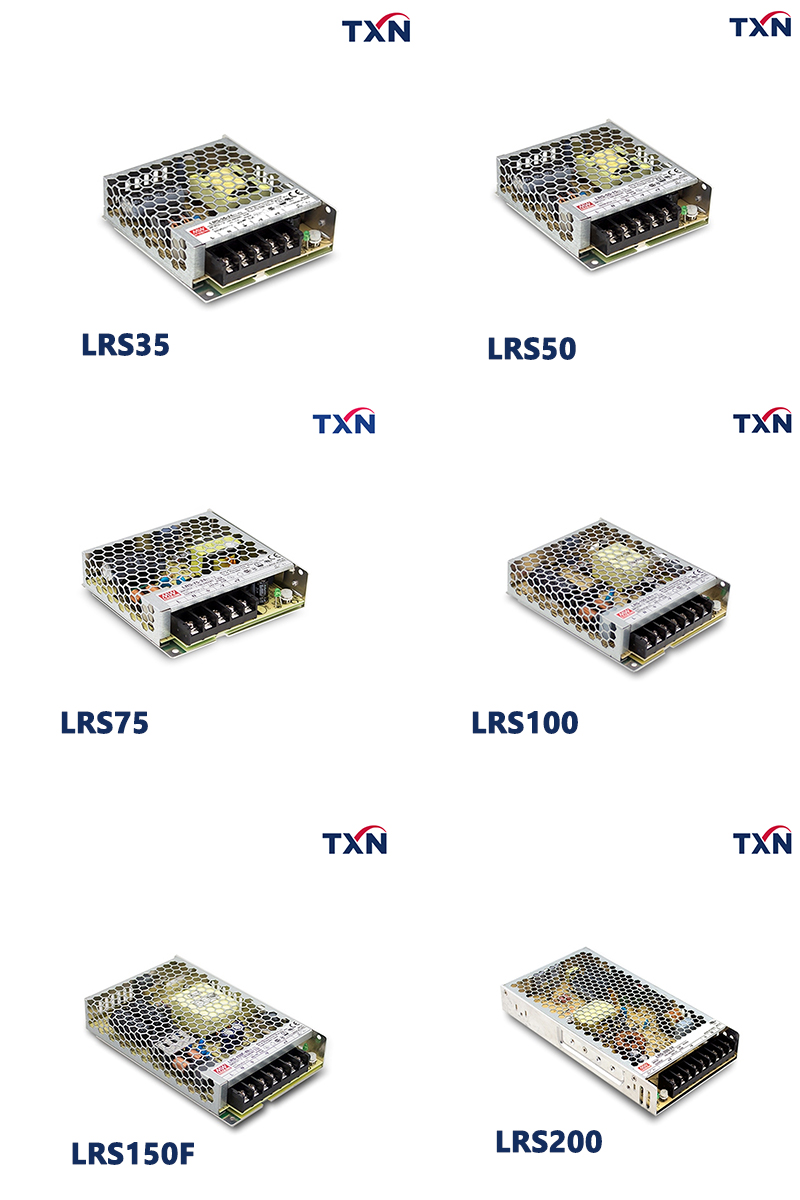

More Types:
Noted: In Stock.
